Medical heating blanket SHWT-E
(we are applying for CE certification )
Effectiveness
1. Real time temperature display in heating process, heating immediately upon powered on, and heating up quickly
2. Intelligent temperature control system of 35℃-40℃, adjustable every 0.1℃
3. Dual channel control device, heating up and down at the same time, and three-dimensional heating
Safety
1. 24V DC power supply
2. Precise temperature control, over temperature protection of the whole circuit
3. Power-on self test, quintuple audible and visual alarms
4. Certified by EMC test, no interference to monitoring instruments
5. Heat pad IPX9 waterproof rating, host IPX2 waterproof rating
6. No water, no wind, no noise, and no impact on laminar flow purification
7. Heat pad with a 8-layer structure, with the characteristics of water proofing, wear-resistance, scrub-resistance, insulation, heat preservation, softy, and bedsore-resistance.
Simplicity
1. Large-screen LCD, one key switch operation
2. Compact and portable host with multiple installation and fixation methods
3. Multiple specifications of heating pad to meet various surgical procedures
4. No consumables and connectors, convenient for disinfection, and long service life
Composition | Picture | Description |

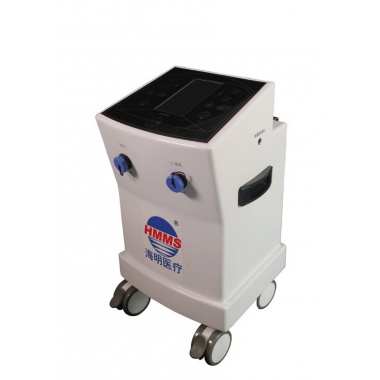

Control system (dual channel) | Rated voltage and rated frequency: AC220V、50Hz Rated output voltage: DC24V Rated output power: 300 VA Host: small size, light weight, medical silent caster, and supporting a variety of installation methods Control system: dual channel, free conversion of single and dual heating; be upgraded and connected to the hospital internet of things system Temperature range: 35℃ ~ 40℃, adjustable every 0.1℃ Temperature display: large-screen LCD, dynamic display of real-time temperature of blanket surface and set temperature Body temperature probe: real time display of patient’s body surface temperature Over temperature and fault alarms: cut off the power supply and provide audible and visual alarm signals at the same time | |
Application system Heat pad size (mm) E1: 1000*520 E2: 1200*520 E3: 1500*520 E4: 1800*520 E5: 1200*800 | Heating materials: carbon fiber flexible heating wire, heating immediately upon powered on and heat dissipating evenly Heat pad structure: 8-layer structure (waterproof layer, comfort layer, expansion layer, insulation layer, heating layer, heat preservation layer, cushion layer, and isolating layer) Anti-liquid function: waterproof rating IPX9 Specification of heat pad: lower spread and upper cover, with various combinations that can meet the requirements of different surgical procedures Easy to use: no noise, no connector, no liquid leakage, and no consumables Electromagnetic compatibility: certified by EMC test, no electromagnetic radiation and no electromagnetic interference to the monitoring instrument Bedside fluoroscopy: capable to pass through X-ray and having no impact on the surgery requiring bedside fluoroscopy |
