Best choice of perioperative warming and thermal insulation

(we are applying for CE certification )

  Body temperature is one of the main vital signs of the human body. Body temperature maintenance is crucial for various physiological functions of the human body. Hypothermia (core temperature < 36°C) is a common side effect in patients undergoing anesthesia and surgery. A survey of 3126 patients in 28 hospitals nationwide in 2016 has shown that the incidence of perioperative hypothermia reaches 44.5%.

Medical heating blanket-Product features

1:Safety

1.1:12V DC voltage, no electric shock hazard

1.2:Precise temperature control and over temperature protection of whole circuit, no scald hazard

1.3:Work normally in case of moisture and liquid infiltration, no risk of electric leakage

1.4:No electromagnetic interference to operating room monitoring instruments, electrotome and other equipment

2:Effectiveness

2.1:Carbon fiber flexible heating material, heating immediately upon powered on, heating up quickly and uniform heat dissipation

Intelligent microcomputer controller, controllable and adjustable working temperature and time

2.2:Resistant to folding, laying, covering and wrapping, meeting the needs of various surgical procedures

3:Simplicity

3.1:Simple structure and convenient operation; Independent packaging to avoid cross infection

3.2:No noise and no airflow interference, no impact on laminar flow purification in the operating room

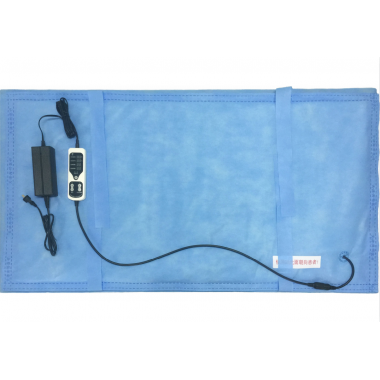

Medical heating blanket-Product composition and introduction

Power supply (safety isolating transformer):

Rated input voltage: AC220V 50HZ

Rated output voltage: DC12V

Rated output current: 6A

Rated output power: ≤ 110VA

Controller:

Power-on self-test

Setting temperature: 35°C-40°C, Adjustable every 1°C

maximum temperature ≤ 41°C

Setting time: 1-h, continuation

Audible and visual alarm: overtemperature alarm, fault alarm

Heat pad:

Overall dimension: 125*60(cm)

Effective heating area: ≤ 0.5m²

Rated power: ≤ 110VA

  90% of the heat exchange of human body temperature is completed through the skin. The medical heating blanket (SHWT-A) exchanges heat with the patient's body through the heat pad, which maximizes the effects of body warming and insulation.

  Meta-analysis and randomized controlled study has revealed that avoiding intraoperative hypothermia and keeping the core temperature of patients normal throughout the perioperative period can significantly reduce operation-related infection and complications, alleviate intraoperative bleeding and blood transfusion, and shorten the stay time in the anesthesia recovery room. The prevention and treatment of perioperative hypothermia is of significance to improve the prognosis of patients and postoperative quality of life. (Expert consensus on prevention and treatment of perioperative hypothermia (2017) National Anesthesia Quality Control Center, Society of Anesthesiology of Chinese Medical Association)
